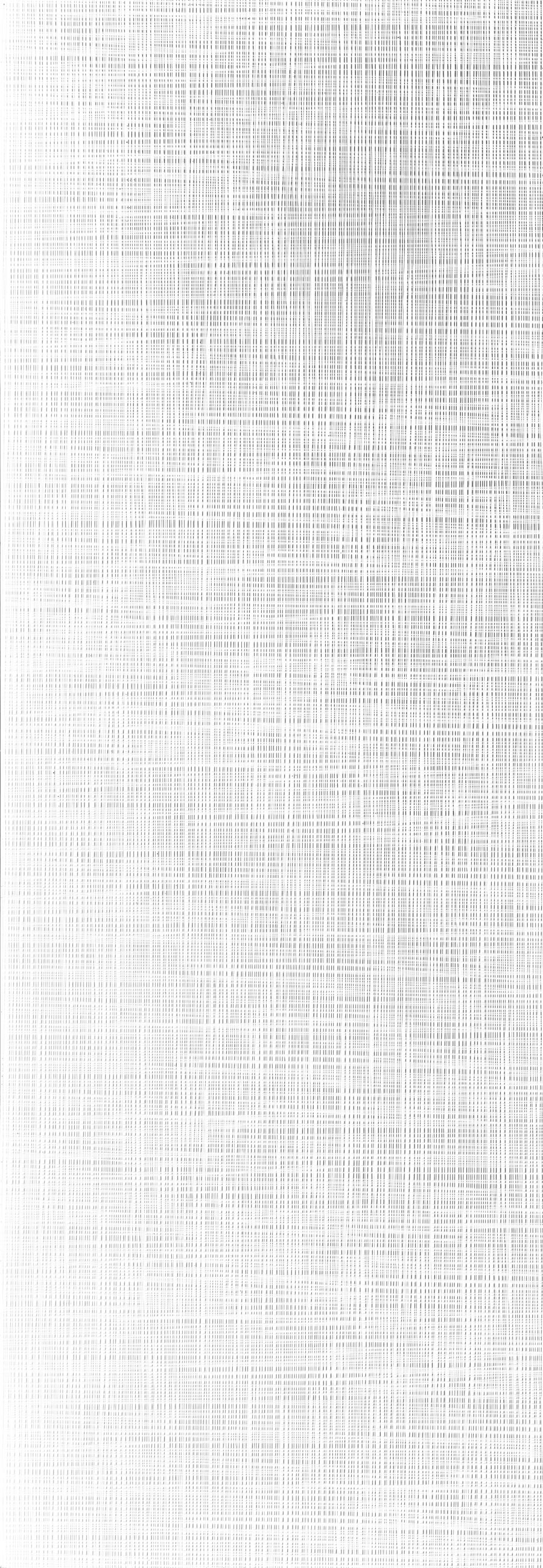

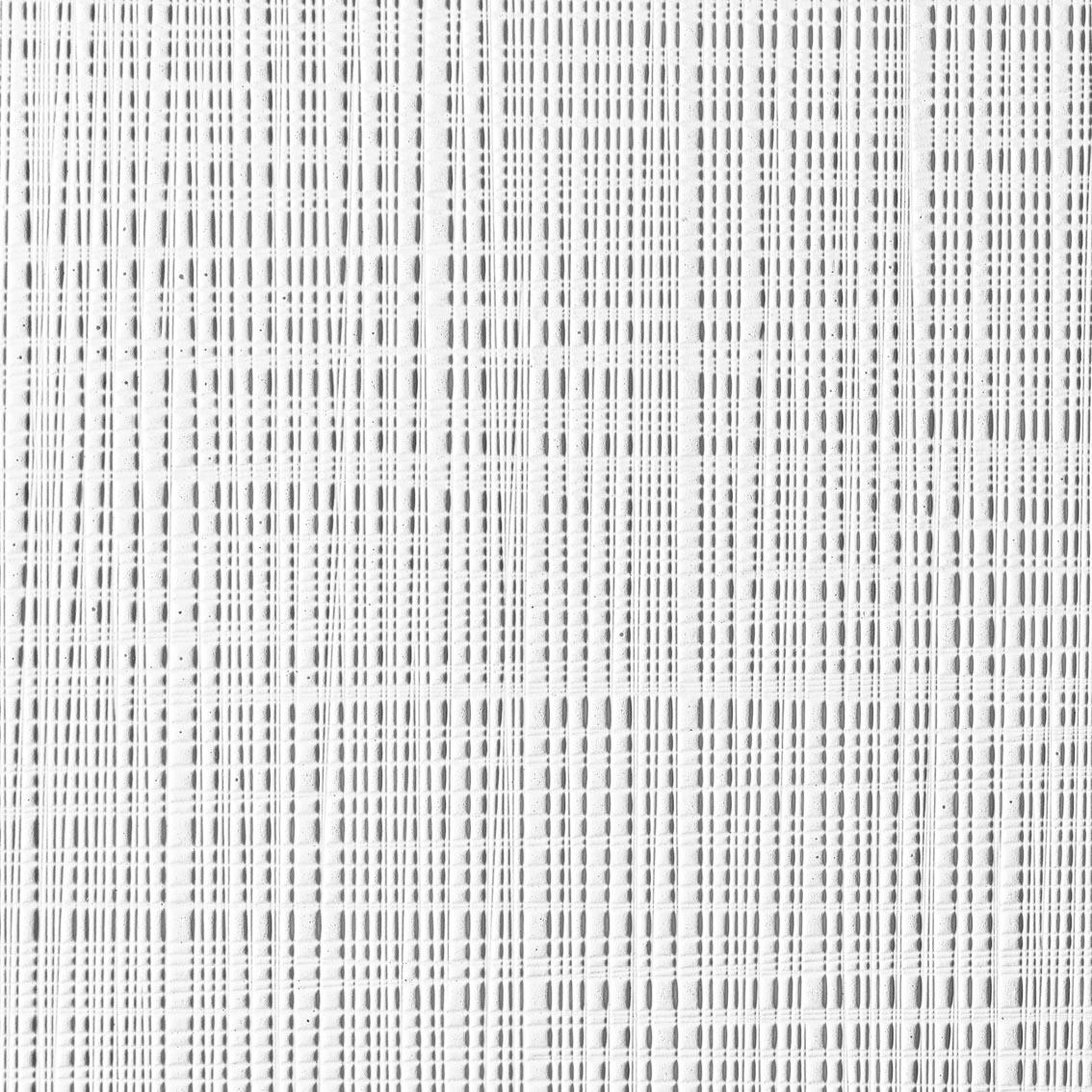

Reminiscent of woven paper textures, Till combines lightness and elegance. With a natural layout, vertical and horizontal lines intersect to create relief. Concrete LCDA et Oberflex are combining their know-how to give rise to this model. Applied to both concrete and wood, Till opens new layout perspectives.
Colors
Grey range
402 White
200 Natural grey
217 Slate grey
216 Anthracite grey
209 Black
Natural range
404 Stone
420 Yellow-ochre
477 Terracotta
473 Ouarzazate
205 Brown
| Description | Full Size fiber-renforced concrete panel moulded on a lightwaight structural substrate. |
| Dimensions | • 2600 x 900 x 16 mm | 102.36’’ x 35.43’’ x 0.59’’ (General tolerance +/- 3 mm | 0.12’’) |
| Finish |
Light pitted |
| Sealer treatment options | • Standard : Dust and stain protection by default (D) • Option : Reinforced protection sealer (S) Sealers are applied by our team in our workshop. |
| Fire Classification | • Euroclass B-S1, d0 • USA: ASTM E84 - Class A / Smoke index:0 / Flame spread index:0 • Canada: CAN UL 102 • Option : Euroclass A2-s1, d0 |
| Indoor air quality |
Classified A+, our products composed of inert matter do not alter the quality of the air, as well as the glue and the finished sealant used to protect the surface of the panels. |
Concrete_LCDA_Depliant_CollectionCroisée.pdf
Concrete LCDA - Installation Manual_EN.pdf
Applications
Wall
Ceilings
Characteristics
Fire reaction
Thermal shock resistance
Sealer protection
VOC A+ rating
Washable with water
Light resistance
