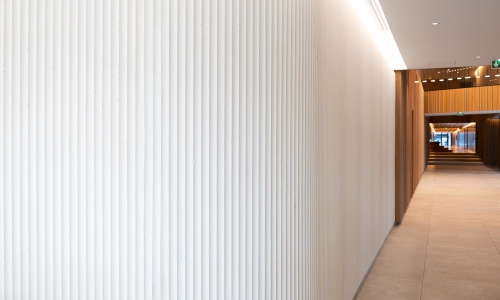

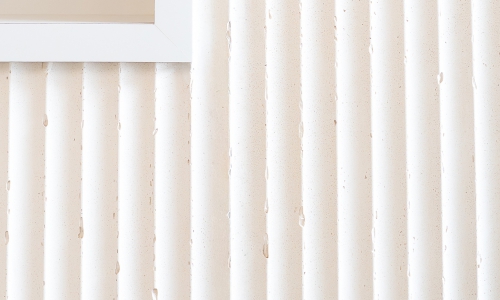

Panbeton® Striation panels enhance the elegance of architectural lines combined with the strength of concrete, suggesting harmony and continuity between the building’s exterior frame and interior design.
Colors
Grey range
White 402
Natural grey 200
Slate grey 217
Anthracite grey 216
Black 409
Natural range
Stone 404
Yellow-ochre 420
New
Terracotta 477
New
Ouarzazate 473
Brown 205
| Dimensions | • 2600 x 900 x 18 mm | 102.36" X 35.43" X 0.7" (General tolerance +/- 3 mm | 0.12’’) |
| Finish |
Medium pitted |
| Sealer treatment options | • Standard : Dust and stain protection by default (D) • Option : Reinforced protection sealer (S) Sealers are applied by our team in our workshop. |
| Fire Classification | • Euroclass B-S1, d0 • USA: ASTM E84 - Class A / Smoke index:0 / Flame spread index:0 • Canada: CAN UL 102 • Option : Euroclass A2-s1, d0* *Depending on design & with specific support gypsum fiber board. |
| Indoor air quality |
Classified A+, our products composed of inert matter do not alter the quality of the air, as well as the glue and the finished sealant used to protect the surface of the panels. |
ConcreteLCDA_TechnicalSheet_PB_Striation.pdf
ConcreteLCDA_InstallationGuide_EN.pdf
ConcreteLCDA_InstallationGuide_US.pdf
Applications
Wall
Ceilings
Characteristics
Fire reaction
Thermal shock resistance
Sealer protection
VOC A+ rating
Washable with water
Light resistance
