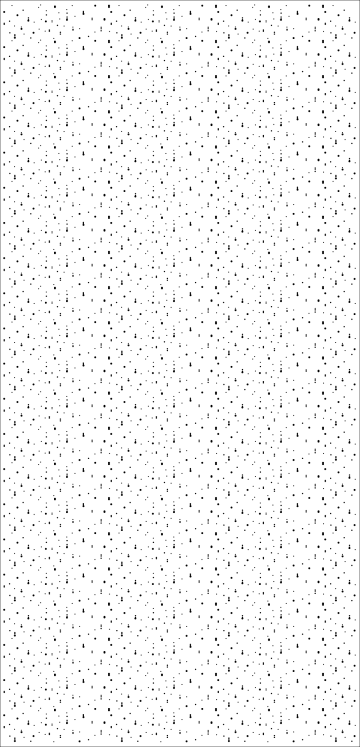

Preview of the perforated pattern on a light-colored wood, medium-colored wood or solid color surface.
Choose your surface from over 250 Oberflex models.
Choose your surface from over 250 Oberflex models.
Customizable model on configurator.
Structure of the panel : Oberflex decorative surface (wood or solid color) + 16 mm MDF substrate (natural or black) + balancing + black felt. More infos

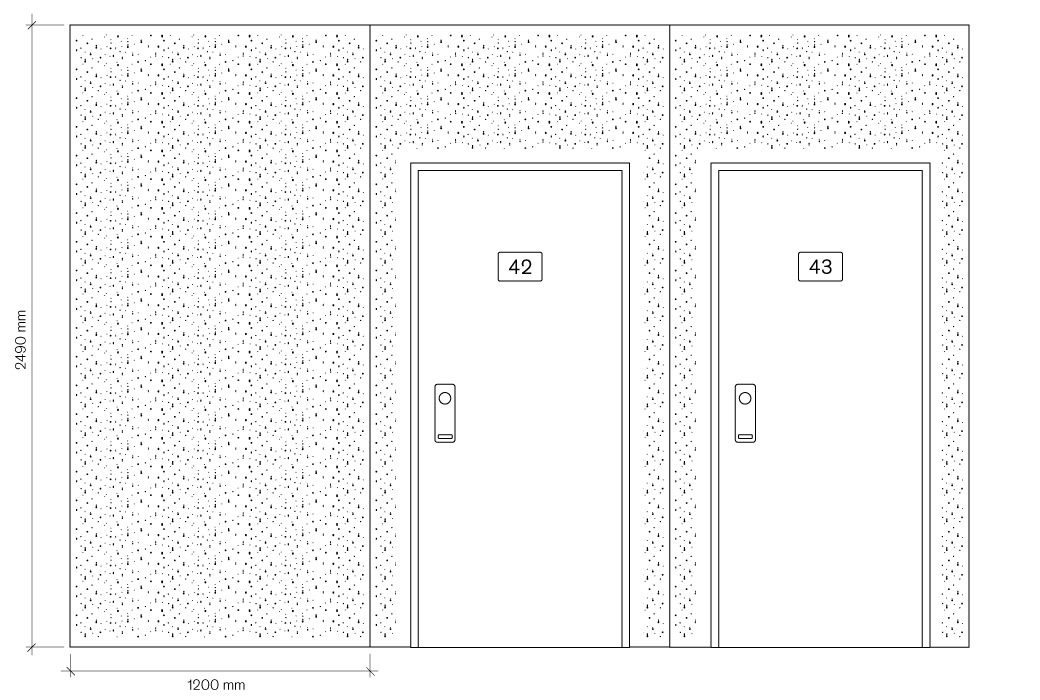

Standard dimension : 2490 x 1200 mm (for wood surfaces, first dimension indicates the wood grain direction )
Other dimensions : custom-made panels according to a plan and/or a cutting list
Total thickness : 18 mm
Fire rating : M1 or Euroclass Bs1d0

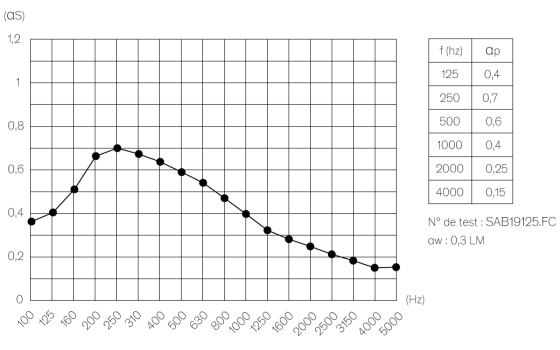

Acoustic performances :
- Average absorption coefficient αw : 0,3
- Perforation rate : 12,3 %
Registered pattern
Datasheet Obersound Snow
Acoustic test result
Obersound - How to specify form.pdf
Studio 5.5
Acoustic performance
Applications
Wall
Ceilings
Furniture
